APPLICATIONS:

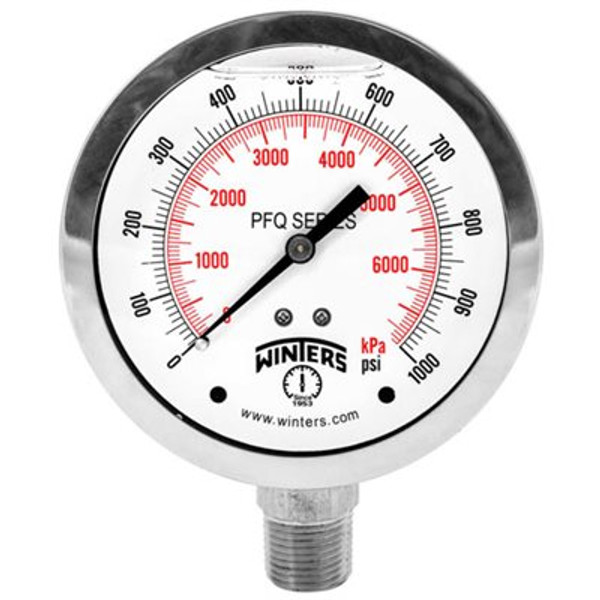

Note: The image may be different from the actual product
General Specifications for PFQ series
| Dial | 1.5″ (40mm), 2″ (50mm), 2.5″ (63mm), 4″ (100mm), white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | PFQ: OT 58 brass with restricted orifice (dual scale only) or AISI 316 SS with restrictor screw (dual scale only) PFQ-LF: Lead free brass with restricted orifice (dual scale only), NSF-61-372 certified |
| Connection | 1/8”, 1/4” or 1/2” NPT standard with restricted orifice |
| Fill Liquid | Glycerin |
| Bourdon Tube | 1.5” (40mm), 2″ (50mm): Phosphor bronze C or coil shaped for brass socket SS C or coil shaped for 316 SS socket 2.5” (63mm), 4” (100mm): Phosphor bronze C or coil shaped, AISI 316 SS C or coil shaped for 316 SS socket |
| Movement | PFQ: OT 59 brass or SS PFQ-LF: Lead free brass, NSF-61-372 certified |
| Pointer | Aluminum, anodized black |
| Welding | Brass: Silver alloy, 316SS: TIG |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Material | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40°F to 200°F (-40°C to 93°C) Glycerin Filled: -4°F to 150°F (-20°C to 65°C) |
| Accuracy | 1.5” (40mm), 2″ (50mm): ±2.5% of full scale 2.5” (63mm), 4” (100mm): ±1.5% of full scale value |
| Enclosure Rating | IP65 |
| Warning (brass and lead free brass internals only) |  Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
