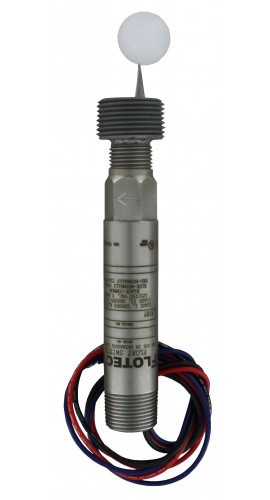

Dwyer L6EPB-B-S-3-B Liquid Level Switch, Brass Housing, Polypropylene Spherical Float

No reviews yet Write a Review
$435.05
SKU:
L6EPB-B-S-3-B
Condition:
New
Availability:
In Stock
5 customers are viewing this product

Dwyer L6EPB-B-S-3-B Liquid Level Switch, Brass Housing, Polypropylene Spherical Float

$435.05

Dwyer L6EPB-B-S-3-B

Features

  • Compact design is built for years of trouble-free service
  • Simple and dependable operation with no mechanical linkage
  • Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
  • Leak proof lower body machined from bar stock
  • Direct tee mounting to act as an external float chamber
  • Weatherproof and explosion-proof body for demanding outdoor applications
  • Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
  • Sensitive to level changes of less than 1/2" (12 mm)

Applications

  • Direct pump control for maintaining level
  • Automatic tank dump operations
  • Level control
  • Valve control
  • Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes

Dwyer L6EPB-B-S-3-B Specifications

Service Liquids compatible with wetted materials
Wetted Materials Float: Solid polypropylene
Lower Body: Brass
Magnet: Ceramic
External Float Chamber (Tee): Brass
Temperature Limit -4 to 220°F (-20 to 105°C)
Pressure Limits Maximum pressure 250 psig (17.2 bar)
Enclosure Rating Weatherproof and explosion-proof
Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G
Switch Type SPDT snap switch
Electrical Rating 5 A at 125/250 VAC (V~)
Electrical Connections 18 AWG, 18" (460 mm) long
Upper Body Brass
Conduit Connection 3/4" male NPT
Process Connection 1" female NPT
Mounting Orientation Horizontal with index arrow pointing down
Specific Gravity Minimum 0.9
Weight Approximately 1.75 lb (.8 kg)
